CHAMPIONS® C3D Cylinder
The CHAMPIONS® C3D cylinder allows you to transform the lock with a European profile cylinder into a lock with the 3DKEY system without replacing it.
It combines 3 different Mottura security systems: cylinder in key or knob version that can be shaved on the internal side, special Defender® and 3DKEY encrypted body on the external side.
The 3DKEY key with 20mm shank and hexagonal profile is composed of 3 coded surfaces with 9 pins + 2 desmodromic tracks with a particular guiding system for the 6 rotating pins (patented), free to rotate and without springs. The false anti-probing traces on the pins and the high number of possible combinations make it extremely difficult to manipulate and decode the encryption but allow a smooth and silent rotation.
- Body and rotor are ected against drilling (hardened steel pins, spheres, pins and caps).
- Possibility to choose the type and finish of the Defender® (Basic, spring, ring nut).

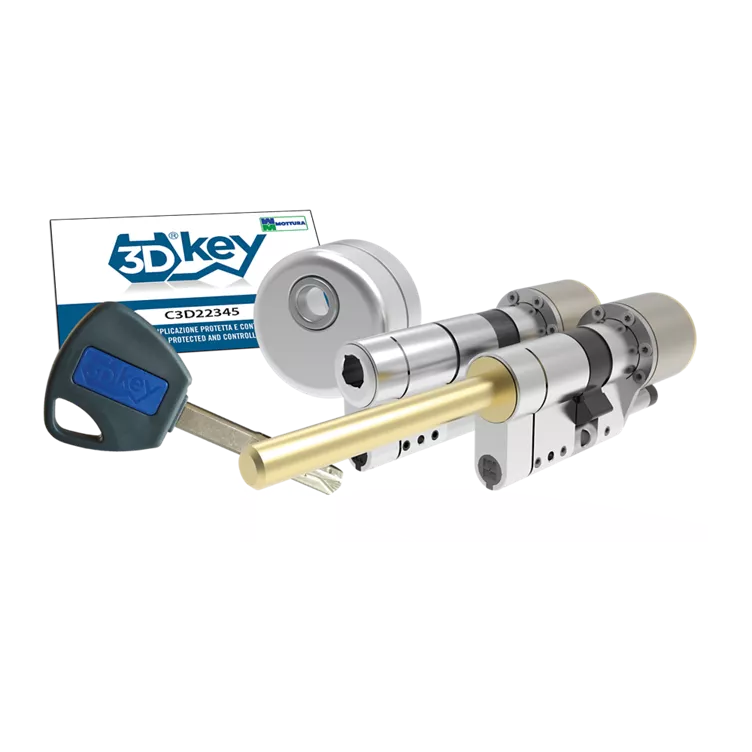

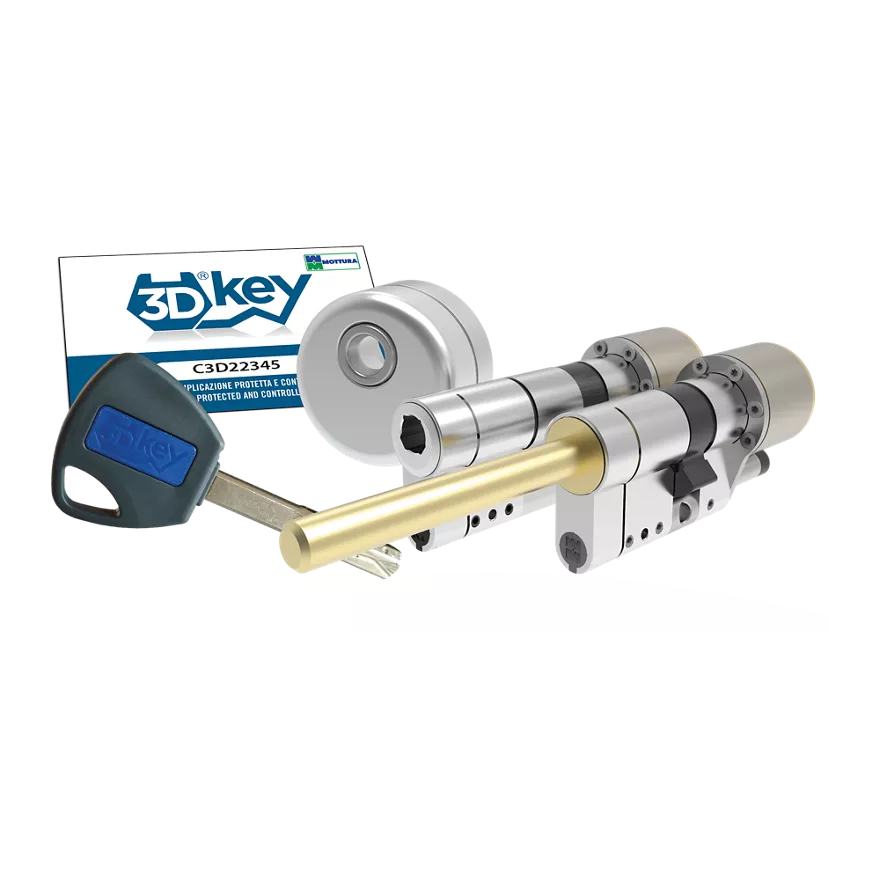

- The package includes the full set of cylinder (with spacers if necessary), ownership card, 5 keys, assembly instructions and fixing screws. To guarantee maximum security, the keys and ownership card are sealed at the origin.
- ICIM certificate.
Features
-
Made in Italy
-

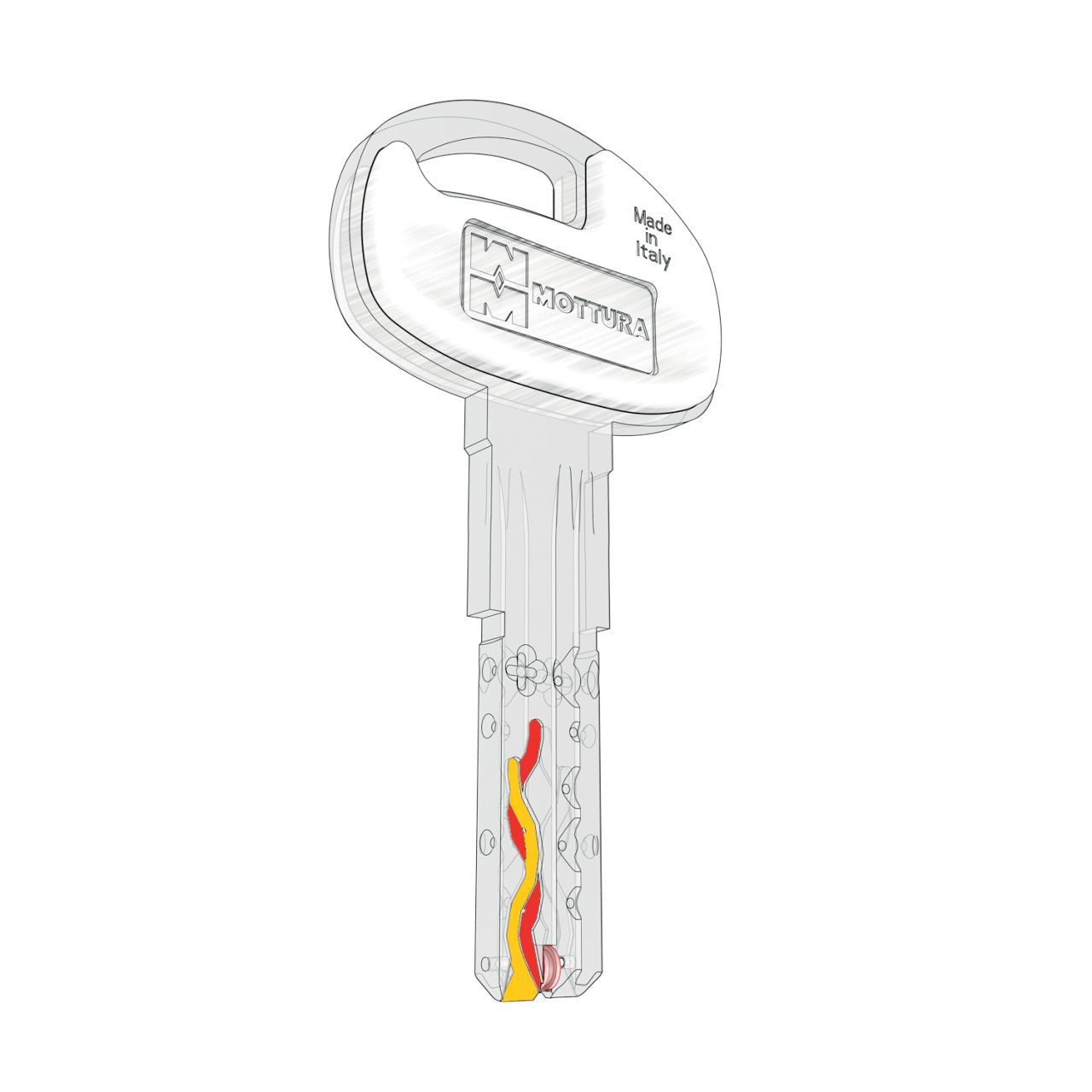

Desmodromic track
-
Anti snap shear
-
30° off-centered cam rest position
-
NO Bumping/Picking
-
NO Tracing
PROTECTED and CONTROLLED key duplication ONLY in Mottura
The certified PROTECTED and CONTROLLED duplication of CHAMPIONS® C55 keys represents a further step in the "active" protection guaranted by the CHAMPIONS® range. The duplicate control is already active since the duplicate request: the owner's card, which comes with each set of original keys, must be presented to the authorized MOTTURA CLUB center along with an original key (for verification).
Mottura Serrature di Sicurezza S.p.A. is the only entity that can LEGALLY duplicate CHAMPIONS® C55 keys, of which its "key blanks" are NOT on sale.
The owner's card is then the only document which can be used to obtain duplicates, and it has to be stored in a safe place.
Without an ORIGINAL KEY and an ORIGINAL CARD it is NOT possible to obtain duplicated keys.
Anti-bumping
Resistant to cylinder percussion attacks.
Anti-picking
Resistant to break-in attempts with a pick-lock tool.
Anti-tracing
Protection against key forgery attempts.
Anti-snap
Designed in such a way that, in the event of an attempt to break it with an iron rod, the cylinder breaks at a specific point.
Cylinder type
CHAMPIONS® C3D cylinders are available in 5 different types.
Basic
With Defender® Basic and fixed height
Spring adjustable
With Defender® DF07, spring adjustable with a steel escutcheon
Spring adjustable
With Defender® DF17, spring adjustable with a hardened steel (HRC 53) escutcheon
Adjustable with fixed pitch
With Defender® DF08, adjustable with fixed pitch and steel escuthceon
Adjustable with fixed pitch
With Defender® DF18, adjustable with fixed pitch and hardened steel (HRC 53) escutcheon
