CHAMPIONS® C55 Cylinder
CHAMPIONS® C55 combines two different encryption systems: a traditional one and one made up of THREE rotating pins.
The particular pin guiding system (patented), free to rotate and without springs, the fake anti-probing traces on the pins and the high number of possible combinations make it extremely difficult to manipulate and decode the encryption.
- Body and rotor are protected against drilling (hardened steel pins, spheres, pins and caps).
- 5 tempered steel anti-picking shaped top and bottom pins.
- “Mathematical” upper profile control pin.
- Patented side aligned profile controls that, in case of picking, bumping and tracing, irreversibly block the cylinder, preventing the opening.
- “Patented” mobile element.
- All thumb turn cylinders or knob provisioned cylinders are supplied with emergency function.

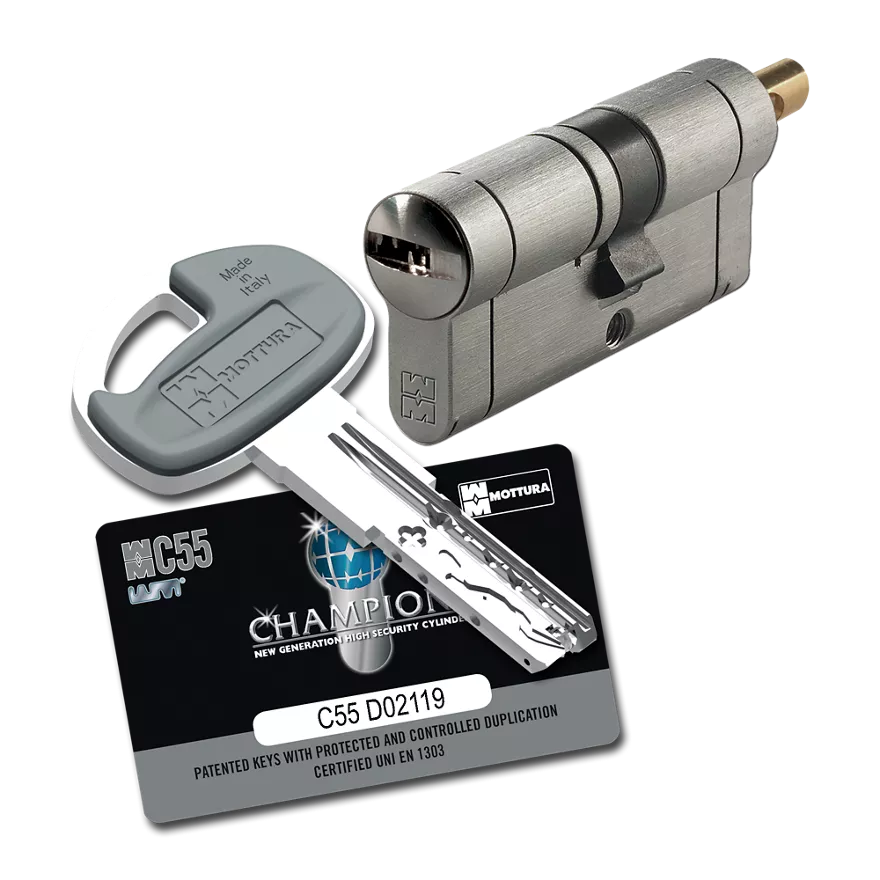

- The package includes cylinder, ownership card, 5 keys, assembly instructions and fixing screw. To guarantee maximum security, the keys and ownership card are sealed at the origin.
- Certified for resistance to “BUMPING” and “PICKING”, they bear the acronym “BKC” on the label.
- Resistant to "TRACING", the key tracing technique, they bear the acronym "TRC" on the label.
- Brushed nickel-plated finish. Brushed brass finish on request.
- ICIM certificate.
Features
-
Made in Italy
-
“MM” profile key
-
"Mathematical" shaped controls
-
Mobile element
-
Desmodromic track
-
Anti snap shear
-
30° off-centered cam rest position
-
NO Bumping/Picking
-
NO Tracing
-
Construction key
-
VARIO version (3 levels)
-
Master key
PROTECTED and CONTROLLED key duplication ONLY in Mottura
The certified PROTECTED and CONTROLLED duplication of CHAMPIONS® C55 keys represents a further step in the "active" protection guaranted by the CHAMPIONS® range. The duplicate control is already active since the duplicate request: the owner's card, which comes with each set of original keys, must be presented to the authorized MOTTURA CLUB center along with an original key (for verification).
Mottura Serrature di Sicurezza S.p.A. is the only entity that can LEGALLY duplicate CHAMPIONS® C55 keys, of which its "key blanks" are NOT on sale.
The owner's card is then the only document which can be used to obtain duplicates, and it has to be stored in a safe place.
Without an ORIGINAL KEY and an ORIGINAL CARD it is NOT possible to obtain duplicated keys.
Anti-bumping
Resistant to cylinder percussion attacks.
Anti-picking
Resistant to break-in attempts with a pick-lock tool.
Anti-tracing
Protection against key forgery attempts.
Anti-snap
Designed in such a way that, in the event of an attempt to break it with an iron rod, the cylinder breaks at a specific point.
Cylinder types
CHAMPIONS® C55 cylinders are available in 6 different types.
Double cylinder
Frictioned upon request (it opens from the outside even if a key is inserted from the inside).
Double cylinder with adjustable knob provision
Knob fixing ø 8 mm.
Double cylinder with knob provision
Knob fixing ø 8 mm.
Thumb turn cylinder
Knob fixing ø 8 mm
Removable knobHalf cylinder
For locks with 14/20 mm thickness
Half cylinder for armoured doors
For 30mm thicnkness locks
Documentation
Increase the protection of your cylinder
Install a Mottura Defender® to increase the safety of your cylinder. Mottura Defender® is a protection for the European cylinder. Such protections are sophisticated and active mechanisms against break-in attempts, with attention to every detail.
