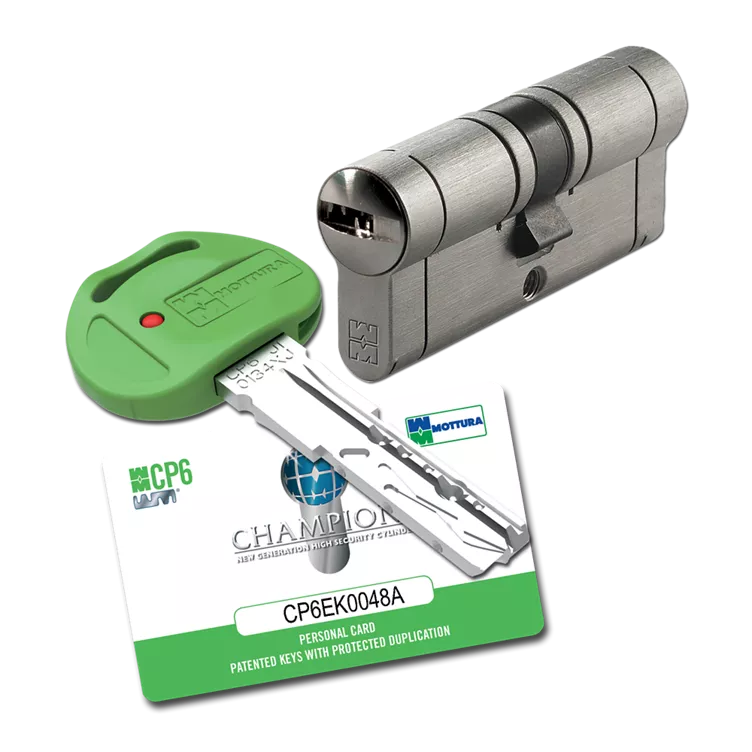

CHAMPIONS® CP6 Cylinder
CHAMPIONS® CP6 combines two different encryption systems: a traditional one and one made up of THREE rotating pins.
The particular pin guiding system (patented), free to rotate and without springs, the fake anti-probing traces on the pins and the high number of possible combinations make it extremely difficult to manipulate and decode the encryption.
- Body and rotor are protected against drilling (hardened steel pins, spheres, pins and caps).
- More practical, more ergonomic handle.
- 5 tempered steel anti-picking shaped top and bottom pins.
- “Mathematical” upper profile control pin.
- Patented side aligned profile controls that, in case of picking, bumping and tracing, irreversibly block the cylinder, preventing the opening.
- All thumb turn cylinders or knob provisioned cylinders are supplied with emergency function.
- The package includes cylinder, ownership card, 3/5 keys, assembly instructions and fixing screw. To guarantee maximum security, the keys and ownership card are sealed at the origin.
- Certified for resistance to “BUMPING” and “PICKING”, they bear the acronym “BKC” on the label.
- Resistant to "TRACING", the key tracing technique, they bear the acronym "TRC" on the label.
- Brushed nickel-plated finish. Brushed brass finish on request.
- ICIM certified.
Features
-
“MM” profile key
-
"Mathematical" shaped controls
-
Desmodromic track
-
Anti snap shear
-
30° off-centered cam rest position
-
NO Bumping/Picking
-
NO Tracing
-
Construction key
-
Master key
-
Made in Italy
PROTECTED key duplication ONLY in MOTTURA CLUBS
The protected key duplication is supplied with a numbered owner's card, to be showed to the authorized MOTTURA CLUB center along with the ORIGINAL KEY when a duplicate of the key is requested*.
The owner's card always corresponds to the original keys: the numbers printed on the card are the same as the ones printed on the keys.
The owner's card is then the only document which can be used to obtain key duplicates, and it must be stored in a safe place to prevent unauthorized duplication.
*For the protected profiles and personalized package, the key DUPLICATION is RESERVED to the costumer/dealer or its subsidiaries..
Anti-bumping
Resistant to cylinder percussion attacks.
Anti-picking
Resistant to break-in attempts with a pick-lock tool.
Anti-tracing
Protection against key forgery attempts.
Anti-snap
Designed in such a way that, in the event of an attempt to break it with an iron rod, the cylinder breaks at a specific point.
Cylinder types
CHAMPIONS® CP6 cylinders are available in 6 different types.
Double cylinder
Frictioned upon request (it opens from the outside even if a key is inserted from the inside).
Double cylinder with adjustable knob provision
Knob fixing ø 8 mm.
Double cylinder with knob provision
Knob fixing ø 8 mm.
Thumb turn cylinder
Knob fixing ø 8 mm
Removable knobHalf cylinder
For locks with 14/20 mm thickness
Half cylinder for armoured doors
For 30mm thicnkness locks
Documentation
Increase the protection of your cylinder
Install a Mottura Defender® to increase the safety of your cylinder. Mottura Defender® is a protection for the European cylinder. Such protections are sophisticated and active mechanisms against break-in attempts, with attention to every detail.
