Magnetic Defender® DF48
DF48 is a patented magnetic Defender® with a solid escutcheon that can be adjusted via a threaded ring nut on the inside. It can be installed on doors of almost any thickness, even if spacers are required. It is available in 2 versions (DF481 and DF481P).
It belongs to the "Outstanding" security classification, i.e. all those protections that guarantee the highest level of protection for any type of access, from flat entrances to those of a large company.
It consists of a Defender® and a high-strength HRC 53 (65 x 90 mm) steel escutcheon. The key entry is protected by the special rotating cover that is only unlocked by a magnetic security key and a chrome-plated steel rotating washer.

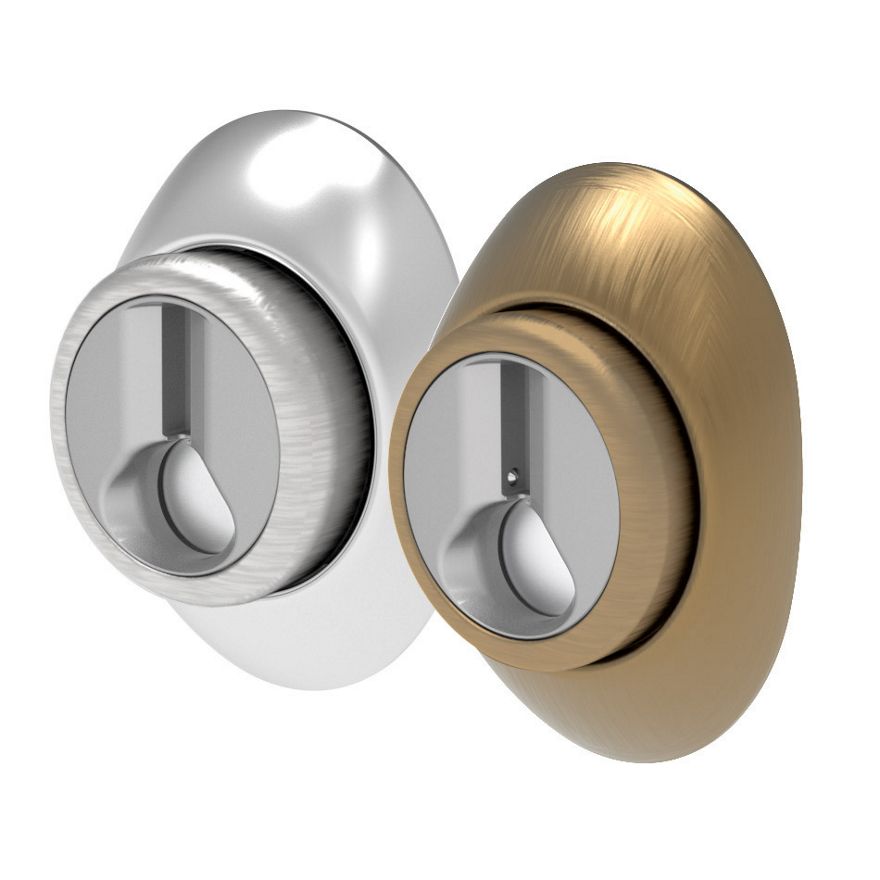

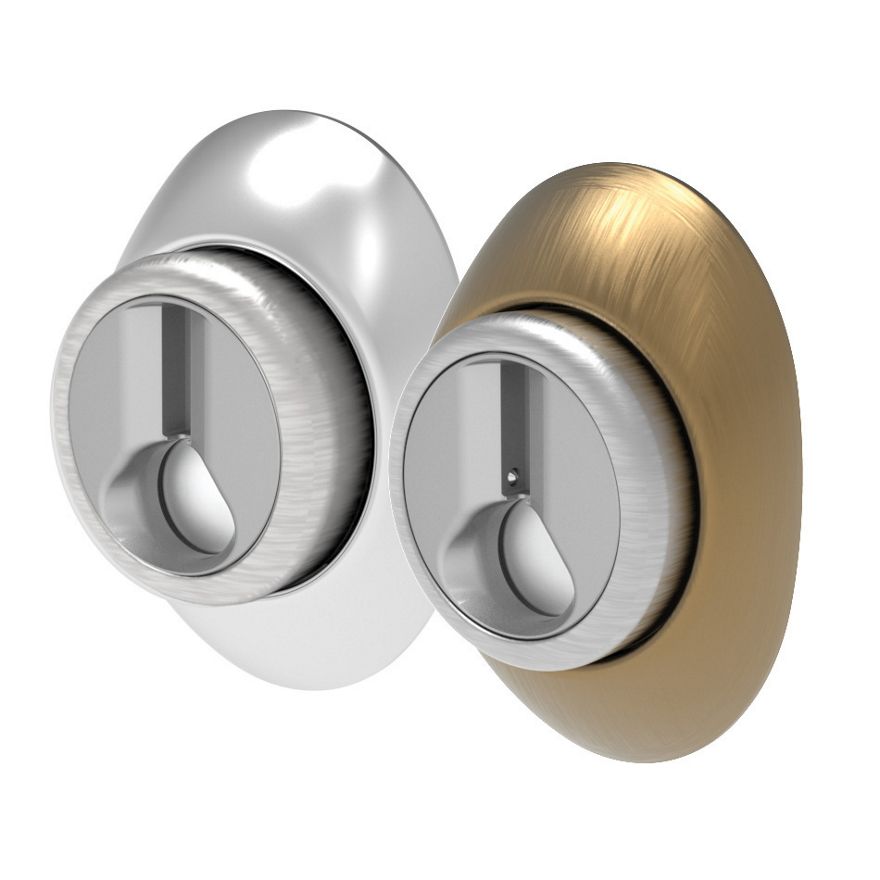

The Defender® and aluminium/brass escutcheon cover is available in 7 finishes.
Features
-
Made in Italy
Anti-bumping
Resistant to cylinder percussion attacks.
Anti-drilling
Resistant to cylinder drilling attacks.
Anti-picking
Resistant to picking attempts.
Anti-cutting
Protection against break-in attempts by cutting the cylinder.
Anti-breaking
Protection against attempts to break the defender by attacks with iron pipe connections.
Patented ring nut adjustment
Mottura Defenders® with patented ring nut adjustment can be easily adjusted with the aid of a screwdriver. This adjustment is made through the front slot visible under the cover on the underside of the protector.
Magnetic protection
The special rotating cover completely conceals and protects the key entry, even from acid attacks.
The rotation of the cover is controlled by the special magnetic key, the security of which is provided by the combination of the polarities of 7 magnets in 8 possible positions for DF481 version and 7 magnets in 8 possible positions plus 2 coding pins for DF481P version (in this model the coding pins do not allow the key to be extracted during rotation of the Defender® body).
