Anti-bumping
Resistant to cylinder percussion attacks.
DF08 Mechanical Defender®
DF08 is a patented mechanical Defender® adjustable via a threaded ring nut positioned on the inside. It can be installed on doors of almost any thickness. It consists of a steel Defender® with a sheet metal escutcheon (72 x 90 mm), available in 3 heights and 2 security versions (B/C).

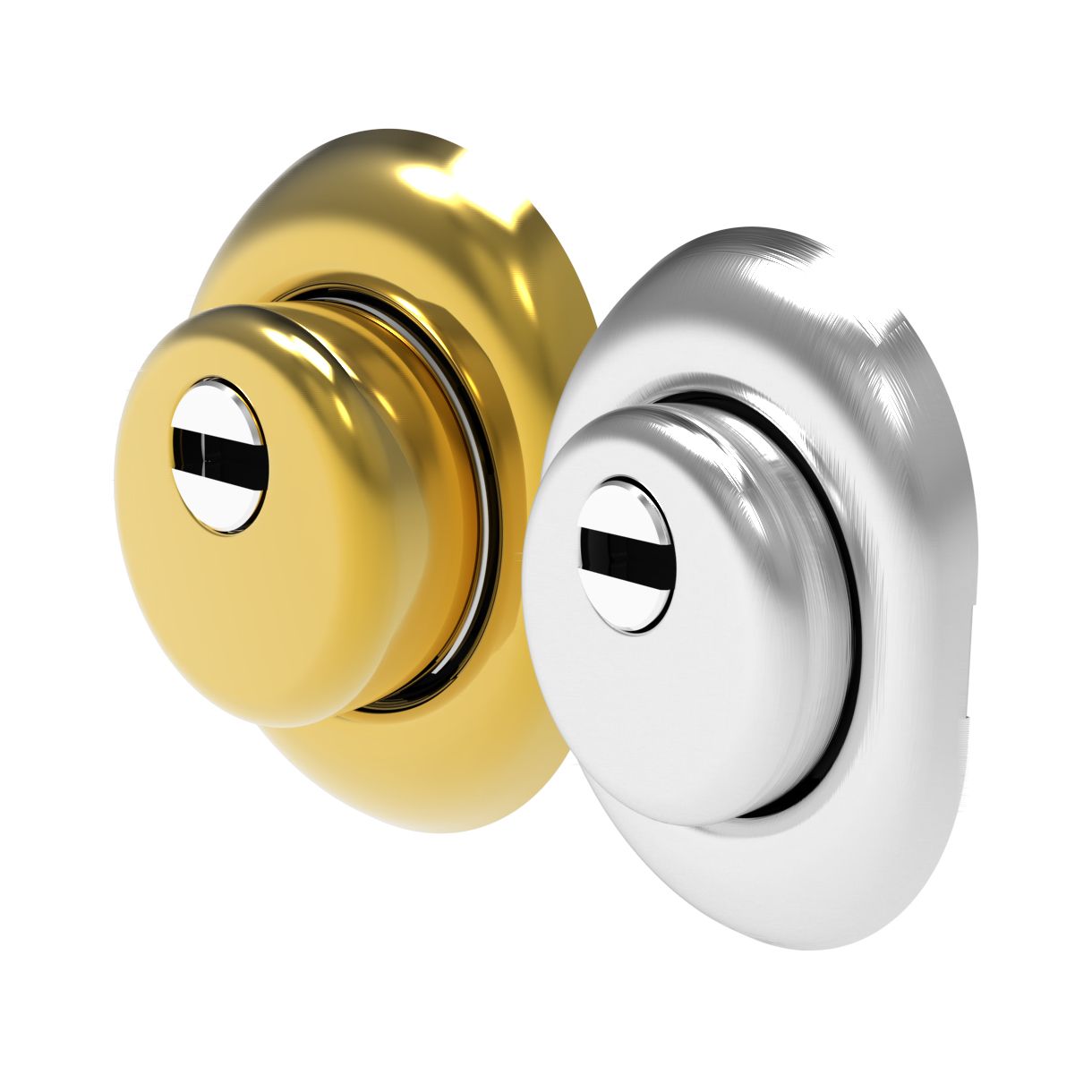

The keyway is protected by a chrome-plated steel rotating washer and the aluminium/brass escutcheon cover is available in 7 finishes.
Features
Made in Italy
Anti-drilling
Resistant to cylinder drilling attacks.
Anti-picking
Resistant to picking attempts.
Anti-cutting
Protection against break-in attempts by cutting the cylinder.
Anti-breaking
Protection against attempts to break the defender by attacks with iron pipe connections.

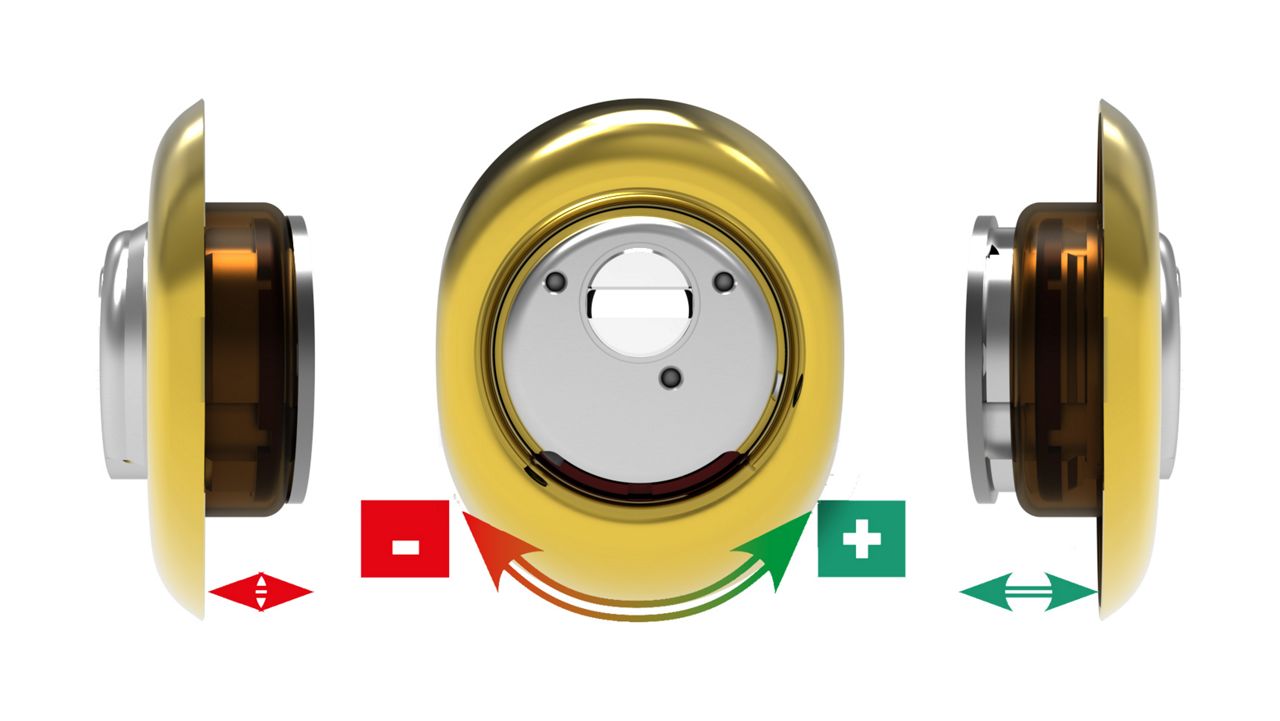

Patented ring nut adjustment
Mottura Defenders® with patented ring nut adjustment can be easily adjusted with the aid of a screwdriver. This adjustment is made through the front slot visible under the cover on the underside of the protector and varies depending on the model:
- + 4 mm (DF081)
- + 7 mm (DF082)
- + 10 mm (DF083)
Security levels
B Version (Level 2)
Two steel spheres protect the cylinder body and two spheres are placed on the chrome washer. Level 2 Defenders® are recommended for the protection of gates and common rooms.

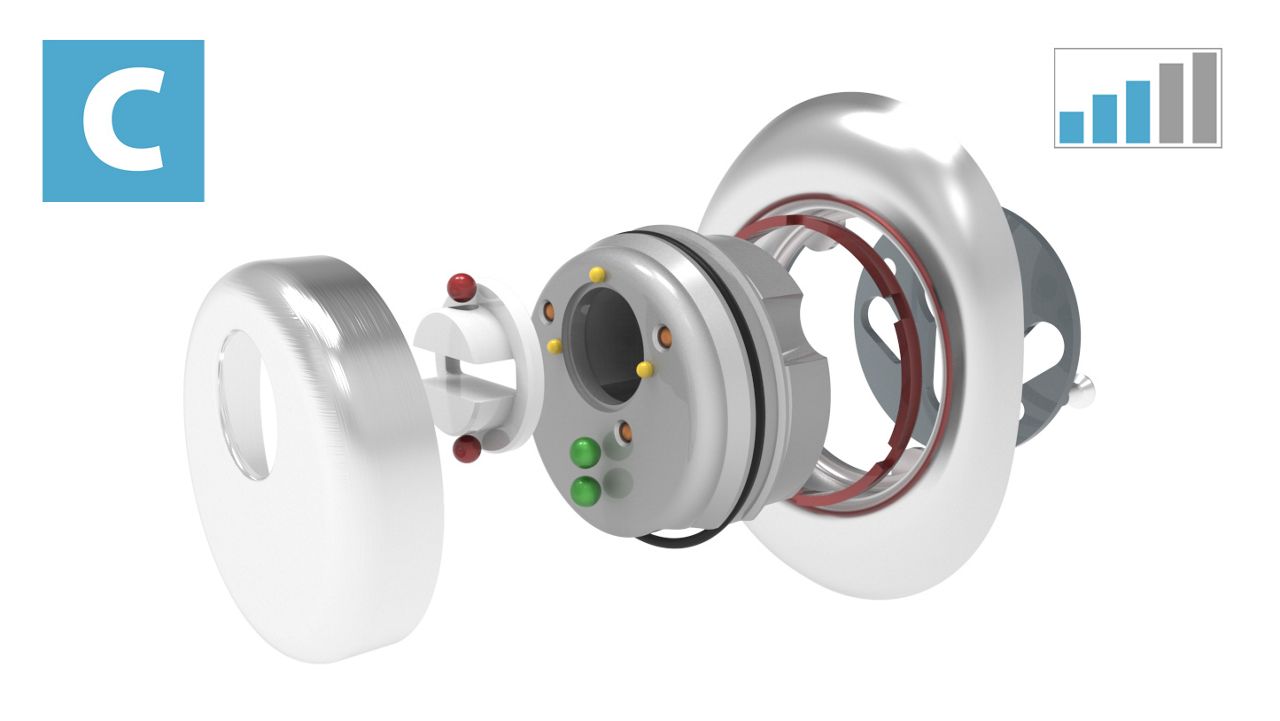

C Version (Level 3)
Two steel spheres protect the cylinder body, two spheres are placed on the chrome washer and six of them are integrated into the Defender® body. Level 3 models are recommended for the protection of condominium entrances.
