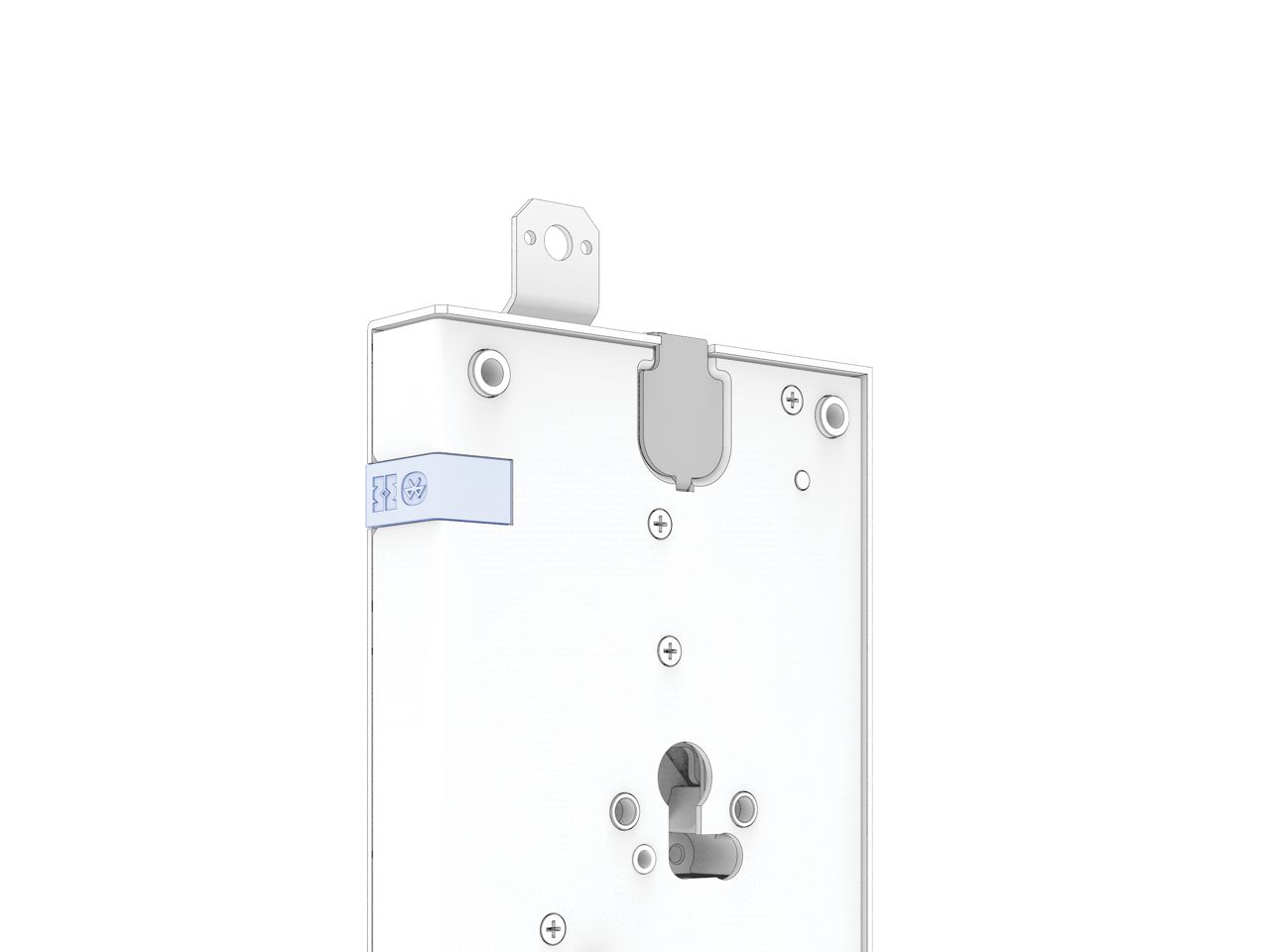

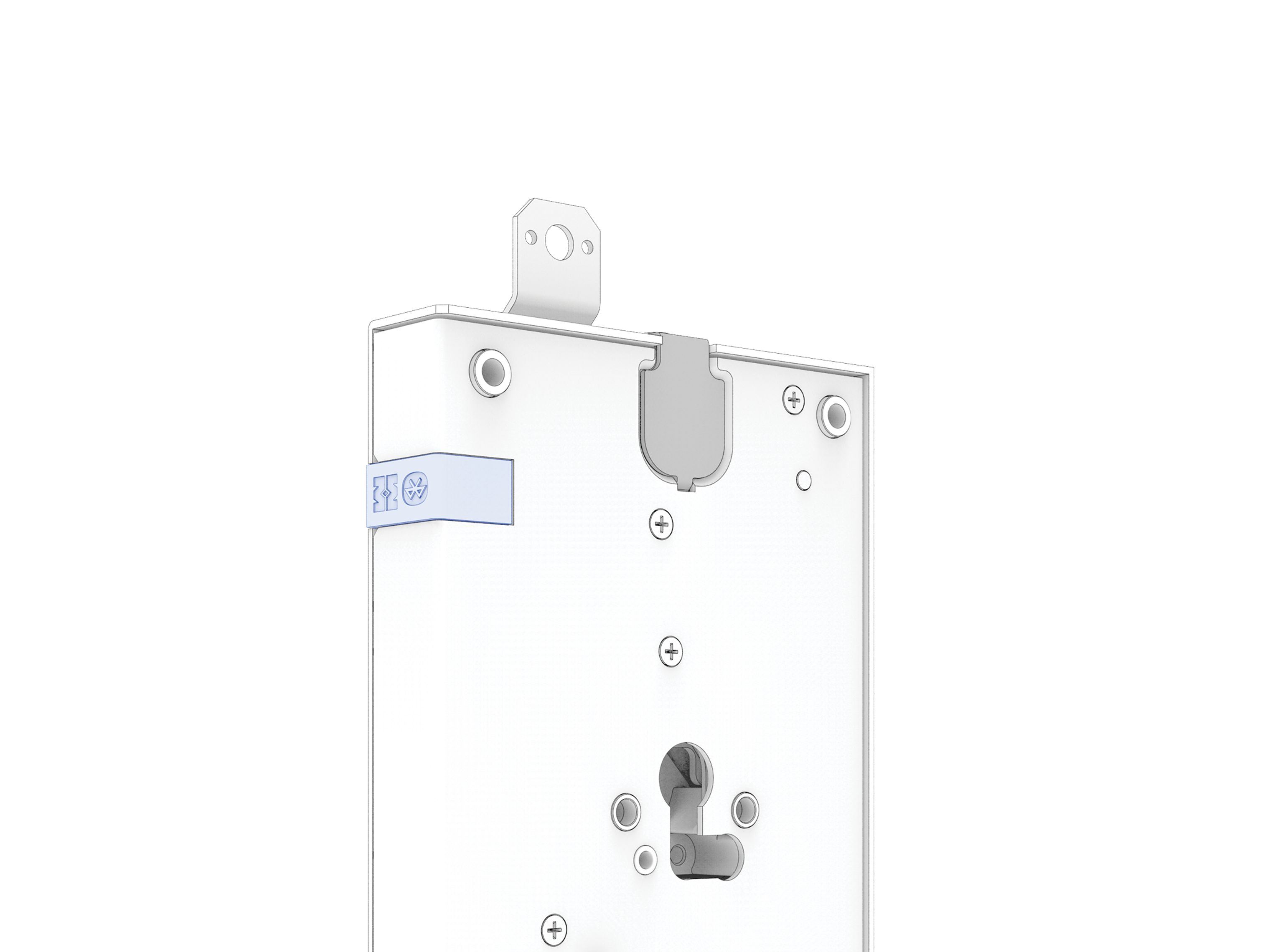

bBLOCK Electronic Lock
bBLOCK is a smart mechatronic lock, meaning an entirely mechanical lock that unlocks electronically and then mechanically. It is designed for Europrofile cylinder, available either in knob-knob version or key-knob version, for armored doors.
This lock is managed by the bMOTTURA app or the bWEBTECHNOLOGY webapp, which allow B&B management and pairing with other bTECHNOLOGY devices (bDIGIT keyboard, bTRACK fingerprint reader, bKEY remote control keyfob). It can support up to 100 devices (smartphones, accessories, codes, fingerprints, etc.). It is able to return the status of the latches, is equipped with an acoustic buzzer and with a connector for remote control.
bBLOCK can be managed either locally via integrated Bluetooth Low Energy (BLE) 5.0, or remotely via the cloud (only if connected to the Internet via the bBRIDGE device).
Features
-
Made in Italy
-
Bluetooth
-
bMOTTURA app
bMOTTURA App
bMOTTURA app allows you to pair all the locks and accessories bTECHNOLOGY branded and manage them.
The most important functions are:
- generation and management of B&B codes with or without cloud;
- modification of the lock settings (for example door status mode, re-closing time, etc.);
- internal diagnostic system;
- access to the last 1000 events.
Types of locks
bBLOCK is available in 2 models
Knob version
The lock needs to be unlocked electronically through bMOTTURA App, dry contact or bTECHNOLOGY devices (meric keypad, fingerprint reader, remote). Then it is possible to rotate the special cylinder with external knob to open the lock. From the inside the lock opens through the quick release operated by handle.
Handle version
The lock needs to be unlocked electronically through bMOTTURA App, dry contact or bTECHNOLOGY devices (numeric keypad, fingerprint reader, remote). Then, it is possible to open the door from outside by handle. From the inside, the lock is opened by the quick release of the handle (downward movement) and quick re-locking by handle (upward movement).
Documentation
bTECHNOLOGY accessories
bDIGIT Numeric Keypad
Bluetooth numeric keypadbTRACK Fingerprint Reader
Bluetooth fingerprint readerbKEY Bluetooth Remote
Bluetooth remote
