bTAG

bTAG is the wall-mounted transponder reader that enables fast and secure access.

Thanks to its integrated BLE (Bluetooth Low Energy) 5.0 technology, it communicates with the bNOVA and bBLOCK smart locks and the bMOTO knob, allowing them to read access credentials saved on bMOTTURA cards.

When connected to the bBRIDGE, bMOTTURA cards saved on the lock can also be managed remotely using the bMOTTURA app (on smartphones) or the bWEBTECHNOLOGY webapp (from a computer).

With bTAG it is possible to save up to 100 credentials in the memory of the smart lock to which it is connected, and to consult the access history of the lock itself. On the individual bMOTTURA card it will be possible to programme specific usage scenarios such as, for example, access to the building only during certain time slots.

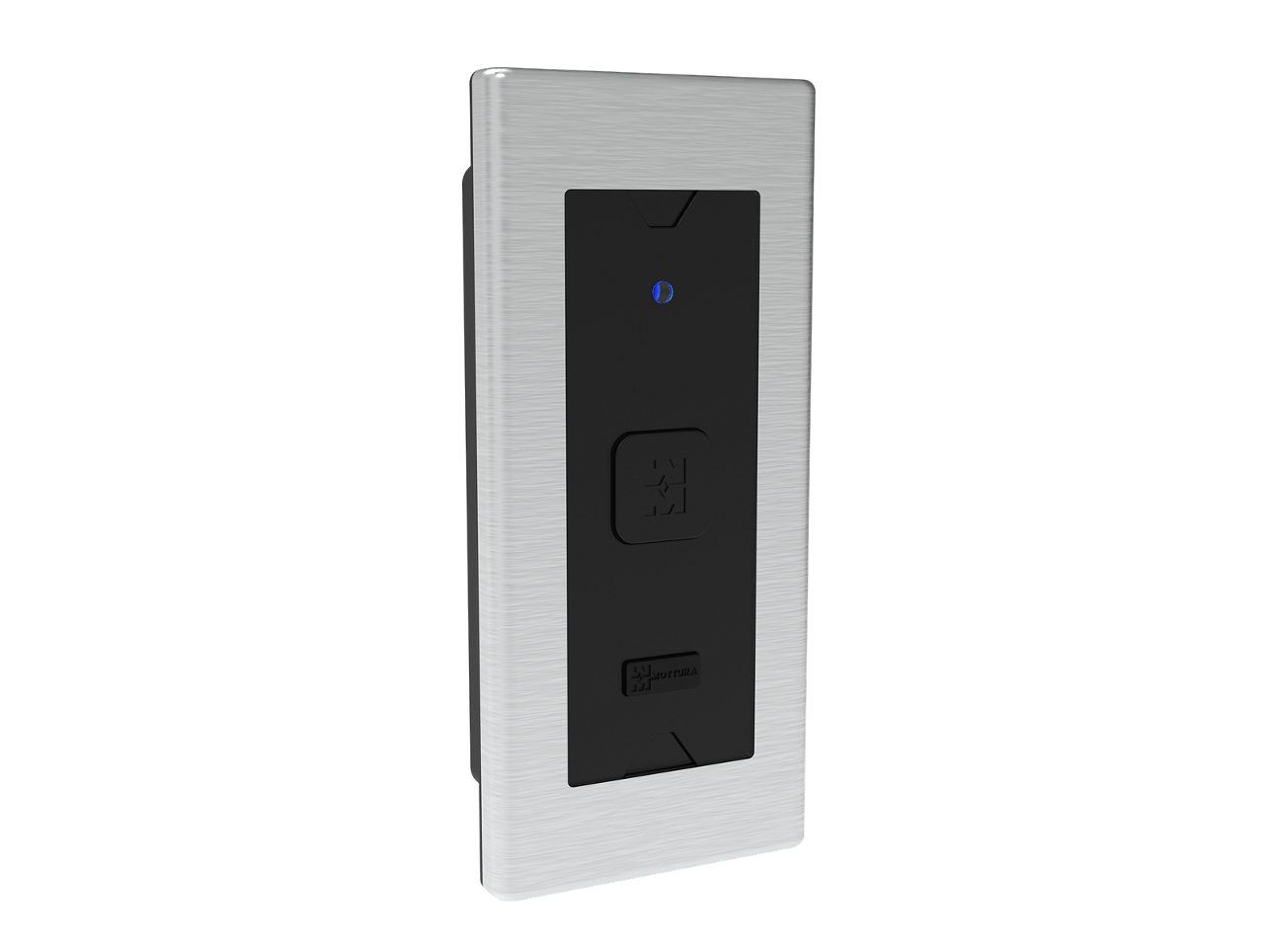

It is available in a surface-mounted or flush-mounted version and either model can be installed with battery power or with a mains cable for connection to the electrical system.

Finishes: Black, Satin Chrome (variant available only for the external frame of the flush-mounted model).

Features

Made in Italy
bMOTTURA app
Transponder
Bluetooth

Versions	Surface-mounted \| Flush-mounted
Communication	Bluetooth 5.0 (Low Energy)
Product dimensions (W x H x D)	Surface-mounted: 55 mm x 122 mm x 19.4 mm \| Flush-mounted: 41 mm x 92 mm x 17 mm
Bluetooth range	Approximately 10 m
Cryptography	AES 128 bit
Connectivity	Mobile: bMOTTURA app for iOS and Android operating systems. Desktop: bWEBTECHNOLOGY app for personal computers (Internet connection via bBRIDGE required)
Access control features	Access history control of registered tags. Access credential management (via bMOTTURA app on master smartphone or bWEBTECHNOLOGY* app from computer) Possibility of programming bMOTTURA cards by setting access only on certain time slots via the access control system. * function only available via connection with bBRIDGE
Power supply	2 coin-type lithium batteries CR2032 \| Mains cable for power supply
Setup	Pairing from master smartphone
Device activation	Battery power supply: The device is usually in power-saving mode. In order to detect the tag, it must first be activated by pressing the appropriate button. Mains power supply: The device is always active and automatically detects the tag placed in proximity.
Colour	Black \| Satin Chrome (variant available only for the external frame of the flush-mounted model).

Power supply

bTAG is prepared for two types of power supply: battery (via 2 CR2032 coin-cell lithium batteries included in the package) or via mains cable for connection to the electrical system. It is up to the installer to choose which of the two options to use according to the needs of the homeowner.

If powered by electricity, the reader automatically detects the tag when it is nearby.

The battery-powered version, on the other hand, is usually in power-saving mode and must be activated by pressing the appropriate button on the device before the credentials stored on the tag can be read.

bMOTTURA app

Manage all access to your home directly from your smarphone with the bMOTTURA app. With a single account, you can control all your Mottura smart devices and accessories.

With a simple tap on your smartphone, you can lock and unlock your door or gate, change settings (such as the automatic re-locking time) and create and manage access codes and temporary or permanent virtual keys for your family and trusted people.

With bMOTTURA, you also have access to internal diagnostic systems and a list of the last 1,000 events associated with the devices.

It is available for iOS and Android and also in a web version for computers, bWEBTECHNOLOGY.

Learn more about bMOTTURA app
